4-inch Stainless Steel Deep Well Pump 4SD
Product Features
High Efficiency & Energy Saving: Superior energy performance
Compact & Space-Saving Design: Minimal footprint
Quick Disassembly: Motor and pump share identical dimensions for seamless servicing
Simplified Installation & Maintenance: User-friendly operation
Applications
Water supply from wells or reservoirs
Domestic, civil, and industrial water systems
Garden and agricultural irrigation
Operating Conditions
Maximum liquid temperature: 35°C
Maximum sand content: 2% (by weight)
Maximum submersion depth: 120 meters
Power Supply:①Frequency: 50Hz②Single-phase AC: 220V | Three-phase AC: 380V③Voltage fluctuation tolerance: ±10%

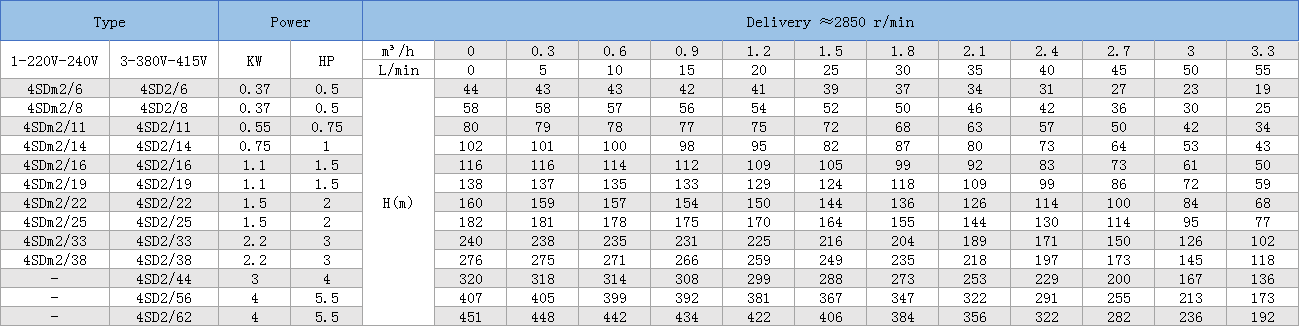

Motor & Pump Specifications
Motor:Single-phase: 220V/50Hz；Three-phase: 380V/50Hz
Control System: Manual control box or digital automatic controller
Pump Construction:①Reinforced stainless steel pump casing②Multi-stage floating impeller design③High-strength engineering
